DESCRIPTION:

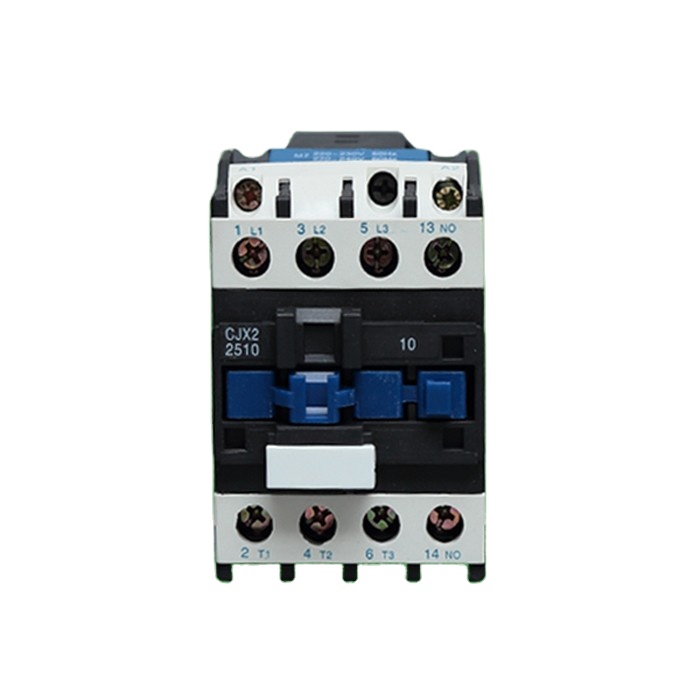

CJX2 series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor.
AC Contactor Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter.AC Contactor is produced according to IEC 60947-4, GB14048-4.
CJX2 series AC contactor, small size, light weight, long working life, can assemble different accessories, such as stacking auxialiry contact group, air delay contact, mechanical interlocks, to form time delay contactor, mechanical interlock contactor, star-delta starter, also inset thermal relay to form magnetic starter.
Technical Data
Type | Rated voltage(V) | Conventional current(A) | Rated current(A) | Control power(kw) | No .of contacts | Installation Method | ||||
220V | 380V | 415V | 440V | 660V | ||||||
LC1-0910 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+1NO | 1with two screws rail |
LC1-0901 | 660 | 3P+1NC | ||||||||
LC1-1210 | 660 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+1NO | |
LC1-1201 | 660 | 3P+1NC | ||||||||
LC1-1810 | 660 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+1NO | |
LC1-1801 | 660 | 3P+1NC | ||||||||
LC1-2510 | 660 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+1NO | |
LC1-2501 | 660 | 3P+1NC | ||||||||
LC1-3210 | 660 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+1NO | |
LC1-3201 | 660 | 3P+1NC | ||||||||
LC1-4011 | 660 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | 1with three screws 0r 35mm din rail |
LC1-5011 | 660 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | ||
LC1-6511 | 660 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | ||
LC1-8011 | 660 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | ||
LC1-9511 | 660 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | ||
Dimension & Mounting Size
Type | A | B | C | D | E | a | b | Ø |
LC1-D09~12 | 47 | 76 | 82 | 113 | 133 | 34/35 | 50/60 | 4.5 |
LC1-D18 | 47 | 76 | 87 | 118 | 138 | 34/35 | 50/60 | 4.5 |
LC1-D25 | 57 | 86 | 95 | 126 | 146 | 40 | 48 | 4.5 |
LC1-D32 | 57 | 86 | 100 | 131 | 151 | 40 | 48 | 4.5 |
LC1-D40~65 | 77 | 129 | 116 | 145 | 165 | 40 | 100/110 | 6.5 |
LC1-D80~95 | 87 | 129 | 127 | 175 | 195 | 40 | 100/110 | 6.5 |
