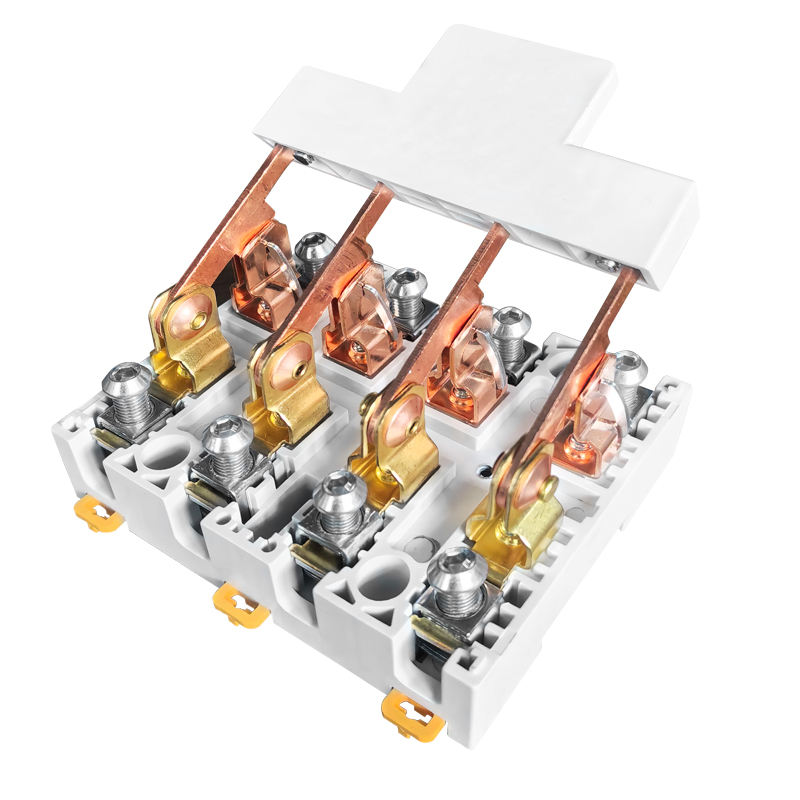

HK18-125/4
KCISE
HK18-125/4
| Quantity: | |
|---|---|
DESCRIPTION:
Photovoltaic special knife switch is suitable for AC 50Hz, rated voltage to 400V and below rated impulse withstand voltage 6kV control circuit. it can be used for infrequent manual switching and disconnecting circuit and isolation circuit in the distribution system of household appliances and industrial enterprises. Greatly improve the personal safety protection performance to prevent false electric shock.
| Product name | Photovoltaic Knife Switch | |||||
| Model No. | HK18-125/2 | HK18-125/4 | HK18-125/4 | HK18-125/4 | HK18-160/4 | HK18-250/4 |
| Number of poles | 2 | 4 | 4 | 4 | 4 | 4 |
| Rated current | 63A | 63A | 100A | 125A | 160A | 200A |
| Rated voltage | 400V | |||||
| Rated frequency | 50Hz | |||||
| Rated impulse withstand voltage | 6kV | |||||
| Using category | AC-20B | |||||
| Rated short-circuit withstand current | 1.89kA | |||||
| Rated short-circuit closing capacity | 2.69kA | |||||
| Mechanical endurance | 10000 | |||||
| Electrical endurance | 1500 | |||||
| Certification | CCC, GB/T, IEC | |||||
| Warranty | 2Years | |||||
| Working environment | Temperature: -25°C~+70°C Humidity: <95% Altitude: ≤2000m | |||||
